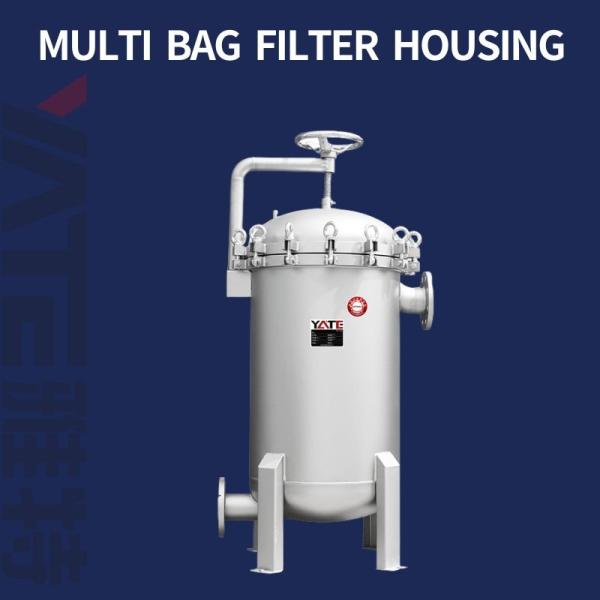

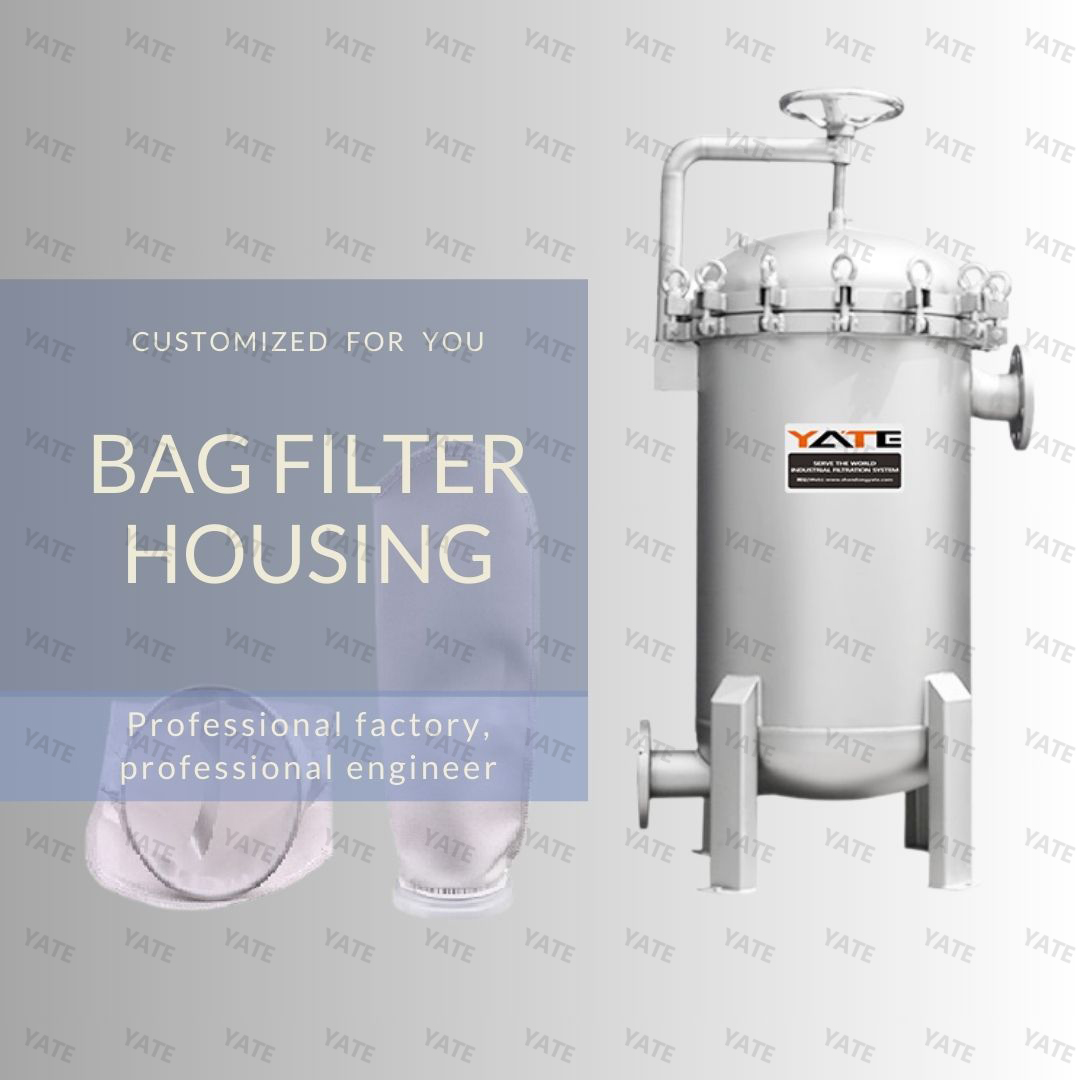

EMULSION FILTER STAINLESS STEEL 304 1/2/3/4 BAG FILTER HOUSING MACHINE

The bag filter is a pressure filter device, which mainly consists of a filter cylinder, a filter cylinder cover and

a quick-opening mechanism, a stainless steel filter bag reinforcement mesh and other main components.

The filtrate flows into the filter bag from the side inlet pipe of the filter shell. The filter bag itself is installed

in a reinforced mesh basket. The liquid penetrates through the filter bag of the required fineness level to

obtain qualified filtrate, and the impurity particles are intercepted by the filter bag. It is very convenient to

replace the filter bag of this machine, and there is basically no material consumption for filtration.

The working principle of the bag filter mainly uses pressure to achieve the filtration process. Specifically:

Liquid flow: The liquid to be filtered flows into the inlet pipe of the filter. This inlet can be either side or bottom.

Filter bag function: The liquid first flows through the filter bag. These filter bags are usually structures supported

by metal mesh baskets. They are made of different materials such as polyester, polypropylene, nylon,

polytetrafluoroethylene, etc. to adapt to different filtration requirements. need.

Impurity interception: When the liquid passes through the filter bag, impurities and particles will be intercepted by

the filter bag. This filtration mechanism is similar to traditional sand filtration, but uses filter cloth instead of physical

sand.

Cleaning and replacement: When the impurities accumulated on the filter bag reach a certain amount, the filter bag

needs to be cleaned or replaced. This can be achieved through backflushing, water washing, mechanical cleaning a

nd other methods.

Outlet discharge: The liquid filtered by the filter bag will be discharged from the bottom of the filter along the metal

support basket wall, and finally flow out from the outlet pipe to complete the filtration process.

The design of the bag filter makes it very convenient to replace the filter bag, and there is almost no material

consumption during the filtration process. In addition, the bag filter can choose side-in and side-out or side-in and

bottom-out water inlet and outlet methods as needed for cleaning and maintenance.

Support and Services:

We provide technical support and service for Bag Filter Housings. Our specially trained service
technicians are available to provide timely and reliable support for our customers.

We are committed to providing our customers with quality products and excellent service. If you
have any questions or concerns about our Bag Filter Housing services, please do not hesitate to
contact us.

Certificate:

Factory and Cases:

Packing and Shipping:

The Bag Filter Housing will be packaged in a cardboard box or a wooden box to ensure safe
delivery. It will be shipped with a reliable courier service.

FAQ:

1. What is the minimum order quantity?

A: One
2. Payment?
A: We accept wire transfer, 30% advance payment, and the goods will be shipped after
the balance is paid.

3. Delivery time?
A: 7 days
4. Customized?
A: Accept customization, including logo customization
5.CAD drawings?

A: We have professional engineers who can provide you with drawing confirmation
6. Packaging?
A:Professional export wooden boxes. The filter will be wrapped with a membrane and
fixed in a wooden box. It will not shake or bump during transportation.

7. After sales?

A: Professional customer service is online 24 hours a day. You can find me at any time and

tell me the problems you encounter. I will do my best to solve them for you

Shandong Yate Filtration Material Co., Ltd. was established in 2012. The factory covers an area of 6000m². Is a filter equipment professional manufacturing company, development, design, manufacturing, sales, one-stop service; Have a professional production technical team. The main products are stainless steel bag filter, core filter, self-cleaning filter, backwash filter, basket filter, large flux filter, PP folding filter, metal filter, filter basket, nylon, PP, PE, PTFE, filter bag, filter cloth, etc. At present, it has reached cooperation with many famous brands around the world. The products are suitable for water treatment, food and beverage, petroleum, fine chemicals, coatings, electronics, pharmaceutical, biotechnology, polysilicon, semiconductor and other industries. Our company has complete qualifications, perfect quality management system, has a number of utility patents, ISO9001 certification, CE certificate. Our company has advanced automatic production equipment, sophisticated processing technology and strict and perfect quality management system. We have independent testing and testing centers. With chemical analysis, spectral analysis, mechanical property analysis, X-ray inspection, magnetic inspection and ultrasonic inspection and other testing equipment. Our company's philosophy is that quality is the life of the enterprise. Our company focuses on the global filtration industry, products exported to Europe, the United States, the Middle East, Southeast and other more than 80 countries. To provide global customers with high quality filtration solutions, for you to solve the filtration troubles.
