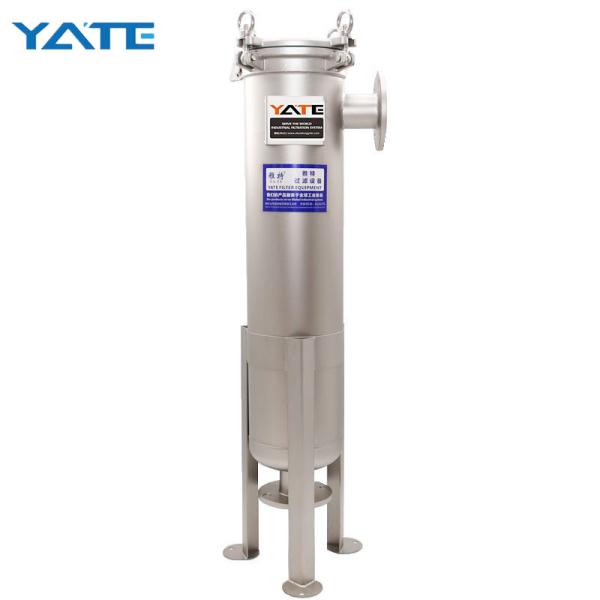

    100% Stainless Steel Bag Filter Housing For Industrial Water Treatment Purification

    Ask Lasest Price
    Brand Name : YATE
    Model Number : YT-GD-1D
    Certification : ISO9001,CE
    Price : Negotiable
    Payment Terms : T/T, D/A, D/P, L/C, Western Union, MoneyGram
    Supply Ability : 30 Set/Sets per Day
    Delivery Time : 7 days
    • Product Details
    • Company Profile

    100% Stainless Steel Bag Filter Housing For Industrial Water Treatment Purification

    100% Stainless Steel Aqua Bag Filter Housing for Industrial Water Treatment Purification

    TECHNICAL FEATURES AND ADVANTAGES


    ■ Precise casting cover, solid, durable and reliable
    ■ Various inlet and outlet size( DN25-DN100 ) availabe for different flowrates
    ■ Three types of inlet and outlet layout optional for easy pipeline design and installation
    ■ Standard size flange, excellent equipment strength and nozzle loading ability
    ■ Quick-Open design, loosen the eye-bolt and nut and open the cover, simple maintenance
    ■ Reinforced eye-bolt seat, no deformation under 1.6 MPa

    Main ModelBFSA1BFSB1BFSC1
    Design Pressure ( MPa )1.0/1.6/2.0
    Design Temperature ( ℃ )0-250①
    Filter Bag Size ( mm )φ178X419φ178X813/φ178X720φ102X355
    Filter Area ( ㎡ )0.250.5/1.00.1
    Flowrate ( m³/h )12.5②25②6m3/h②
    Filtration Rate ( μm )1-2000
    Casting Cover MaterialCF8/CF8M
    Housing Material304/316L
    Support Legs, Bolts & Nuts MaterialSS
    Seal MaterialNBR/EPDM/VITON/Silastic/PTFE encapsulated Silastic/PTFE
    Outside Surface FinishBead Blasted
    Inside Surface Finish120Mesh Polishing ( Standard ), Food Grade Polishing, Halar Coating, PA11 Coating
    Standard Inlet & Outlet ConnectionFlange HG20592-2009( DIN )NPT
    Optional ConnectionFlange HG20615-2009 ( ANSI ), NPT, Standard Sanitary Clamp
    Inlet and Outlet SizeDN40/DN50/DN65/DN80/DN100DN2
    Approx. Volume ( L )18325.8
