    Water Treatment Multi Bag Filter Housing Automotive Industry Filtration

    Ask Lasest Price
    Brand Name : YATE
    Model Number : Multi bag filter
    Certification : ISO9001,CE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 20 Set/Sets per Day multi bag filter housing
    Delivery Time : To be negotiated
    • Product Details
    • Company Profile

    Water Treatment Multi Bag Filter Housing Automotive Industry Filtration

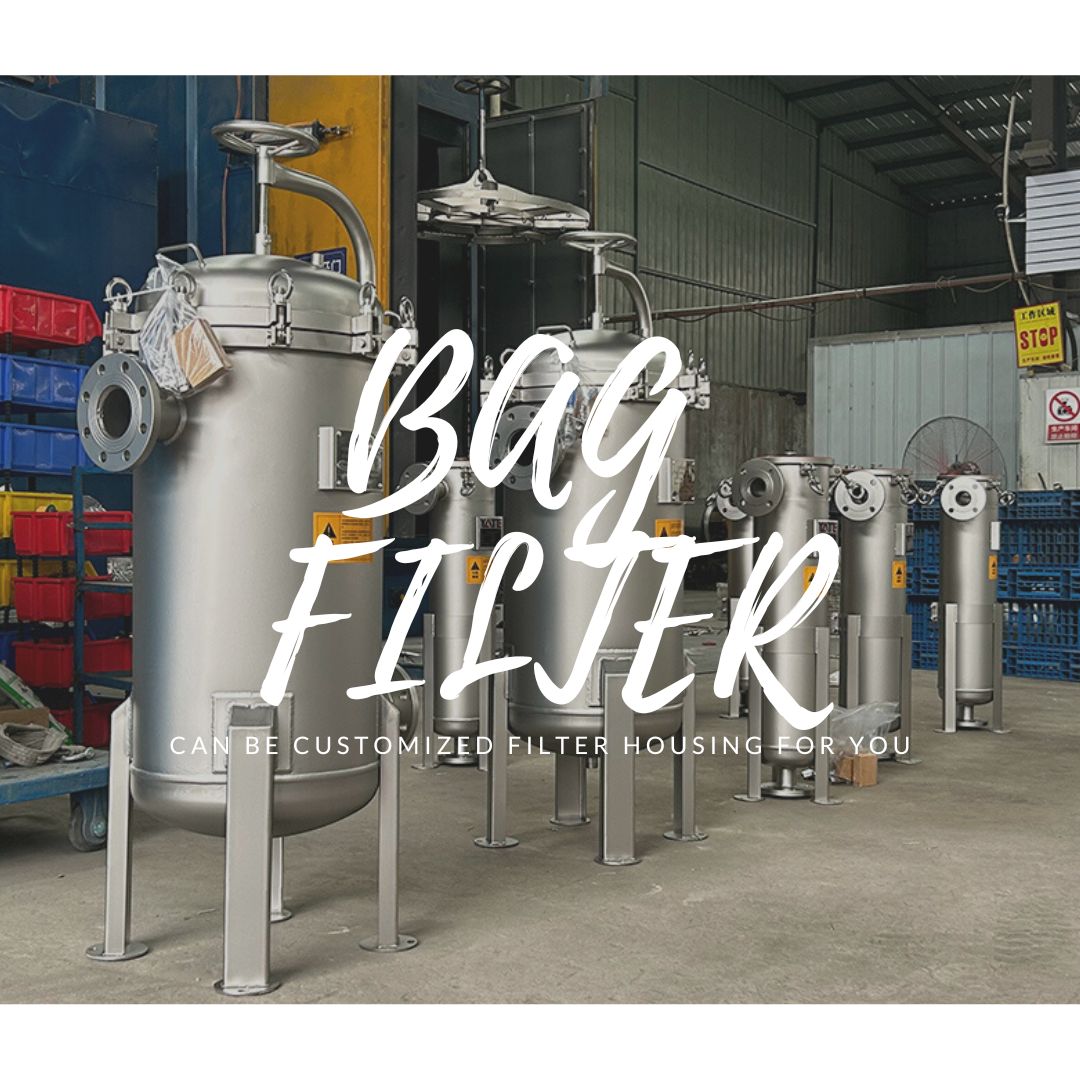

    Bag filter can be customized, the maximum number of bags in the

    filter can reach 200 bags, suitable for fine chemical industry, water

    treatment system, paper making, automobile industry, petrochemical

    industry, mechanical processing, coating, electronics, etc.

    Water Treatment Multi Bag Filter Housing Automotive Industry Filtration

    Model
    Filter Bag#
    Filter Bag
    Qty
    Filtration Area(m2)
    Connection
    Max.Flow
    (m3/h)
    Working Pressure(MPa)
    YT-1D
    1#
    1
    0.25
    DN50
    20
    0.6
    YT-2D
    2#
    1
    0.5
    DN50
    40
    0.6
    YT-2P2S
    2#
    2
    1
    DN50-DN100
    70
    0.6
    YT-3P2S
    2#
    3
    1.5
    DN80-DN100
    100
    0.6
    YT-4P2S
    2#
    4
    2
    DN80-DN100
    140
    0.6
    YT-5P2S
    2#
    5
    2.5
    DN80-DN100
    175
    0.6
    YT-6P2S
    2#
    6
    3
    DN80-DN100
    240
    0.6
    YT-7P2S
    2#
    7
    3.5
    DN80-DN100
    245
    0.6
    YT-8P2S
    2#
    8
    4
    DN100-DN200
    280
    0.6
    YT-10P2S
    2#
    10
    5
    DN150-DN200
    350
    0.6
    YT-12P2S
    2#
    12
    6
    DN150-DN250
    420
    0.6
    YT-14P2S
    2#
    14
    7
    DN200-DN250
    490
    0.6
    YT-16P2S
    2#
    16
    8
    DN200-DN300
    560
    0.6
    YT-18P2S
    2#
    18
    9
    DN250-DN350
    630
    0.6
    YT-20P2S
    2#
    20
    10
    DN250-DN400
    700
    0.6
    YT-22P2S
    2#
    22
    11
    DN300-DN450
    770
    0.6
    YT-24P2S
    2#
    24
    12
    DN350-DN450
    840
    0.6

    PROFESSIONAL CUSTOMIZATION BY TECHNICAL TEAM
    Multi-bag filter is designed for high capacity pollution or large flow filtration requirements, provide
    2-24 bags of design customization, import and export of a variety of sizes optional (DN80-DN250),
    convenient direct connection, ensure sufficient equipment strength and pipeline load bearing
    capacity, quick open design, unscrew the nut to remove the cover, convenient maintenance, Made
    of high-quality stainless steel 304, 316L and other material.
    Water Treatment Multi Bag Filter Housing Automotive Industry Filtration
    Bag filter housing Internal structure
    1.Each bag has a separate locking device
    with no side leakage opportunities.
    2.Integrated design of precision without
    distortion.
    3.Integrated precision with lifting device.
    4.O-ring seal, high-strength and quick bolts.
    Water Treatment Multi Bag Filter Housing Automotive Industry Filtration
    Bag filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,
    in order to achieve liquid filtration,purification,separation,recovery purposes.It consists of three parts:
    bag housing,supporting basket and filter bags.According to flow rate,you may use multiple bags in a
    bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on
    the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,
    the bag will extend and the liquid get evenly filtered through the bag and flow out of the outletpipe.
    Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,
    just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.
